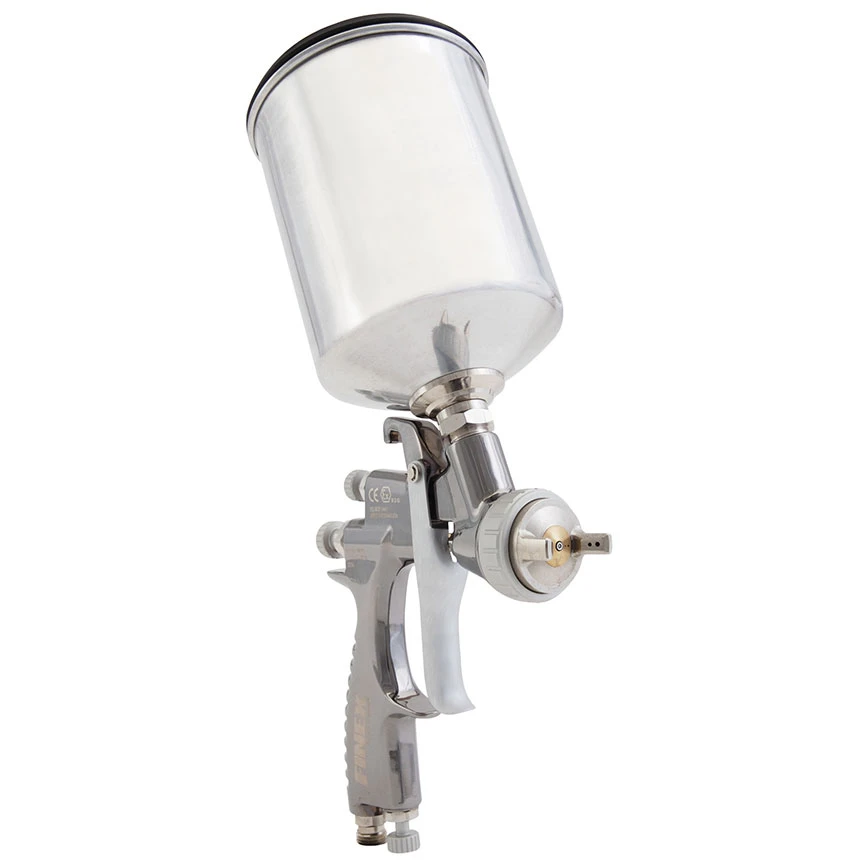

Sharpe Finex FX2000 Conventional Paint Gun

The Sharpe Finex FX2000 Conventional Paint Gun is an innovative gun that features 29% fewer parts, repair kits, precision lids and most importantly, lowest trigger pulls among guns of its kind. The paint gun boasts of a large pattern size of up to 12.5 inches. The conventional gun consists of multiple nozzle options. The gun comes with a one year warranty.

Technical Specifications

• Maximum Air Inlet Pressure – 100 psi (0.7 MPa, 7 bar)
• Air Consumption: 9.5 SCFM at 43 psi (0.3 MPa, 3.0 bar)
• Fluid and Air Operating Temperature Range: 32-109°F (0-43° C)
• Air Inlet Size: 1/4 npsm (R1/4-19)
• Weight with cup: 1.1 lb (0.5 kg)
• Wetted Parts – Aluminum, stainless steel, engineered plastic
• Sound pressure at 43 psi: (0.3 MPa, 3.0 bar) – 81.91 dB(A)
• Sound power at 43 psi: (0.3 MPa, 3.0 bar) 89.23 dB(A)
• Cup Size: 20 oz (600 cc) aluminum

* Produces 10 psi (0.07 MPa, 0.7 bar) spraying pressure at aircap.

** All readings were taken with the fan valve fully open (fan full size) at the assumed operator position. Sound power measured per ISO 9614-2.

Applications:

• 1.4 mm: Base coat, clear coat single stages, sealers, low solid clear, clear coat
• 1.8 mm: Primer, high viscosity

Product Manual & Parts List
